Automatic thermal paper slitting rewinding machine

Automatic thermal paper slitting rewinding machine

  • PPD-Y800

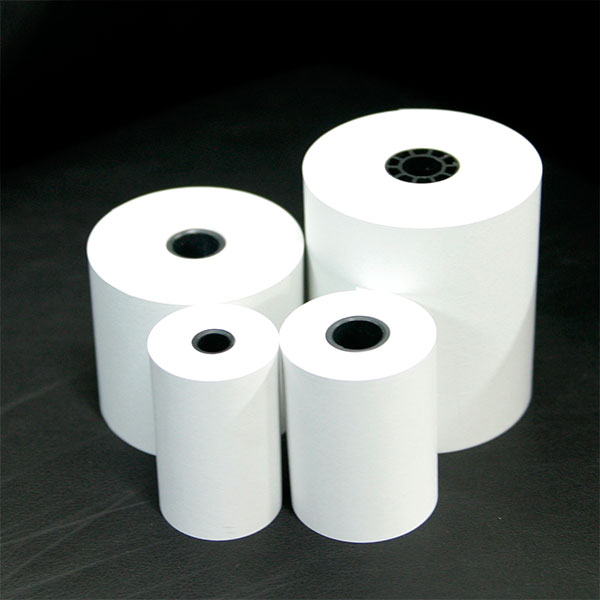

  • Automatic Thermal paper slitting rewinding machine is new designed model to slit rewind jumbo roll to small product ATM roll,thermal roll,pos roll,cash register roll,lottery ticket roll, doctor exam, pressure sensitive labels, credit card receipt paper roll, fax paper, computer bill, medical record paper roll etc..

    Features:

    1:Siemens PLC touch screen HMI,easy to operate and user friendly.

    2:Automatic magnetic powder brake system.

    3:Automatic raw material loading system.

    4:Change the small accessories,this machine can do slitter rewinder without core.

    Machine data:

    Machine name: Automatic Thermal paper slitting rewinding machine

    Machine model:PPD-Y800

    Maximum mother roll width:800mm(900mm option)

    Maximum mother roll diameter:1200mm

    Mother roll inner diameter:76mm(3inch)

    Mother roll loading way: Air shaft

    Baby roll inner diameter:12,15,18mm (option)

    Baby roll outer diameter:maximum 180mm

    Product standard slit width:56mm/79mm(or 57mm/80mm)

    Maximum production speed:150m/min

    Voltage:220/380/415/450v,3ph(option)

    Power:4 kw
