PPD Machinery

PPD-BO1300

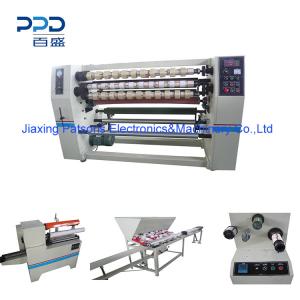

Adhesive Bopp Masking Tape Slitting Machine

Adhesive Bopp Masking Tape Slitting Machine

Adhesive bopp masking tape slitting machine is a small production of slitting of adhesive tape roll,it includes slitting machine, core loader, core cutter and rewinder.
To control each part through operation panel, PLC control, input and display by LED touch screen, easily and simply to operate.
Four shaft running,when the rewinding operation is finished on two shafts the machine will change automatically onto another two shafts.

Features:
1.Much bigger diameter of Mechanical driving shaft will make machine run more stable.
2)Human-computer interface apply PLC control, input and display by LED touch screen, easily and simply to operate.
3)Unwinding part has magnetic tension control device.
4)Unwinding shaft apply pneumatic shaft unwinding type, it's easy and convenient to operate.

Main Data:
Name:4 Shaft Adhesive Bopp Masking Tape Slitting Machine
Model:PPD-BO1300
Material width :1300mm
Max. unload diameter: 800mm
Max. rewinding diameter:180mm
Slitting width 12-1300mm
Rewind paper core:76mm
Slitting blade: razor knife
Machine speed(max.) 180m/min
Voltage: 220/380/415/450V,3ph
Frequency: 50/60Hz
NOTE:Differents sizes can be customized.
