Auto stretch film rewinding machine

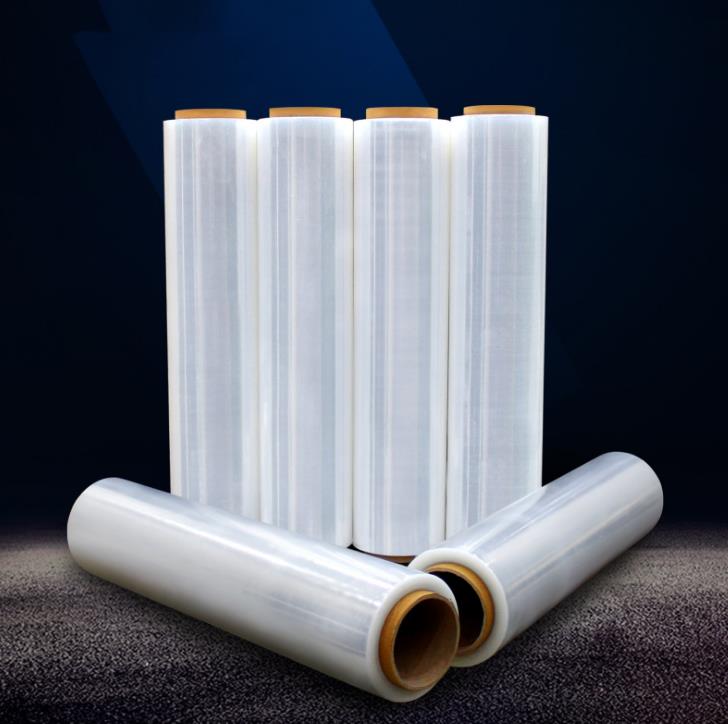

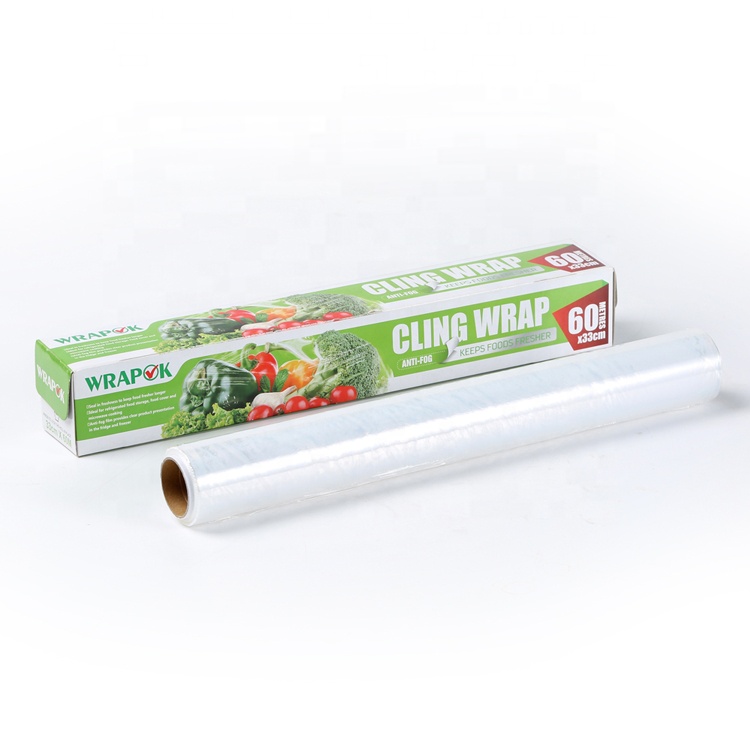

Fully auto food grade stretch film cling film rewinding machine is fully automatic and high quality rewinding machine for plastic film,like PE stretch film,PVC/PE cling film,LLDPE film,indurtsial stretch film roll etc.
The main function of machine is rewind of the jumbo film rolls into small rolls to make the roll more neat.
Machine adopts PLC touch screen,guarantee the operation more correction and easy.


Features:
1.Automatic rewinding,automatic feeding paper core ,automatic changing paper core ,automatic cutting and automatic conveyor the finish product.
2.It is suitable for stretch film,PVC/PE cling film,LLDPE film,HDPE film,PE film, Industrial stretch film etc..

Technical Data:

Name:Fully Auto Food Grade Stretch Film Cling Film Rewinding Machine

Model:PPD-ARW500

Mother roll width:max-500mm

Mother roll paper core size: 76mm

Mother roll outer diameter:max 450mm

Baby roll width:max500mm

Baby roll paper core size:38/50/76mm option

Baby roll length:max 600meters

Working speed:max 1500m/min

Voltage:220/380/415v,3ph

Power:4.37kw

NOTE:Different sizes can be customized.
