New Model 2 Shaft Stretch Film Slitter Rewinder With Touch Screen

New Model 2 Shaft Stretch Film Slitter Rewinder With Touch Screen

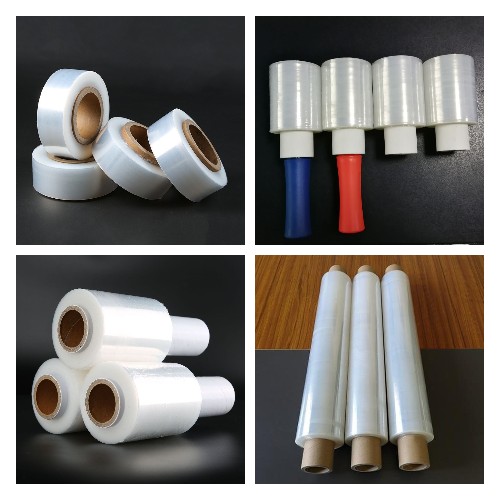

New model 2 shaft stretch film slitter rewinder with touch screen is our latest model to slit and rewind of PE stretch film,industrial stretch film,pallet stretch film,LLDPE film,HDPE film rolls etc.
Machine works with 2 exchange shaft to divide the large diameter film into several small rolls.
Machine works with touch screen and PLC control for simple operation

Features:
1.Different width can be set 50-500mm option,max to jumbo roll width.
2.Length setting adjustable,50/100/200meter option
3.Different size of sub-roll core diameter can be choose,3inch size adopts air shaft rewind,1.5/2 inch size adopt plain shaft rewind.

Technical Data:

Name:New Model 2 Shaft Stretch Film Slitter Rewinder With Touch Screen

Model:PPD-NSFRT500

Jumbo roll width:500m

Jumbo roll weight:  max50kg

Jumbo roll  inner core diameter:3inch(76mm)

Rewind roll width:50 to 500mm

Rewind roll  inner core diameter: 1.5/2/3inch(38/50/76mm)

Rewind roll  outer core diameter:max180mm

Speed:max 650m/min

Power:1.7kw

Voltage:220/380/415V option

Air supply:0.2Mpa

NOTE:Any specifications can be customized.
