Aluminium foil roll cling film roll rewinder

PPD-AFSR500

Aluminium Foil Stretch Film Rewinder

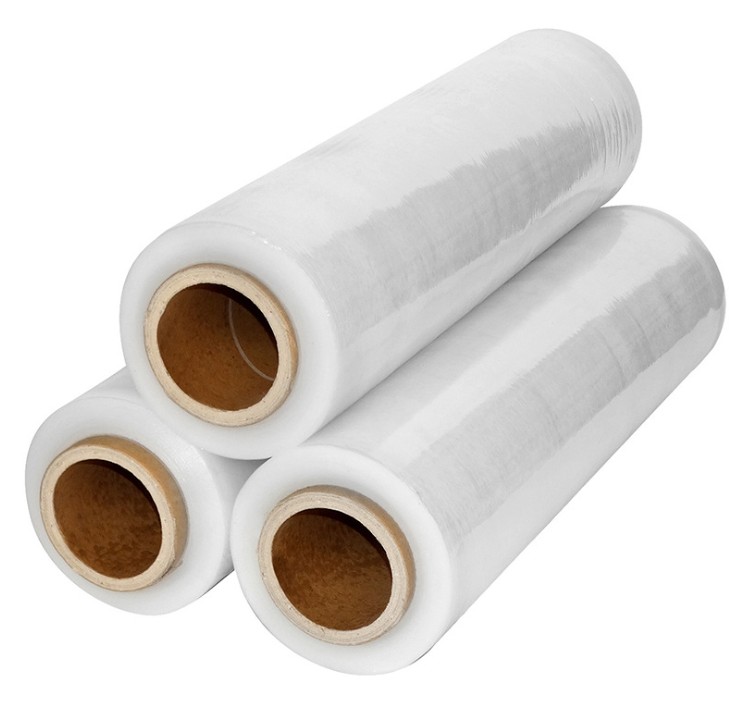

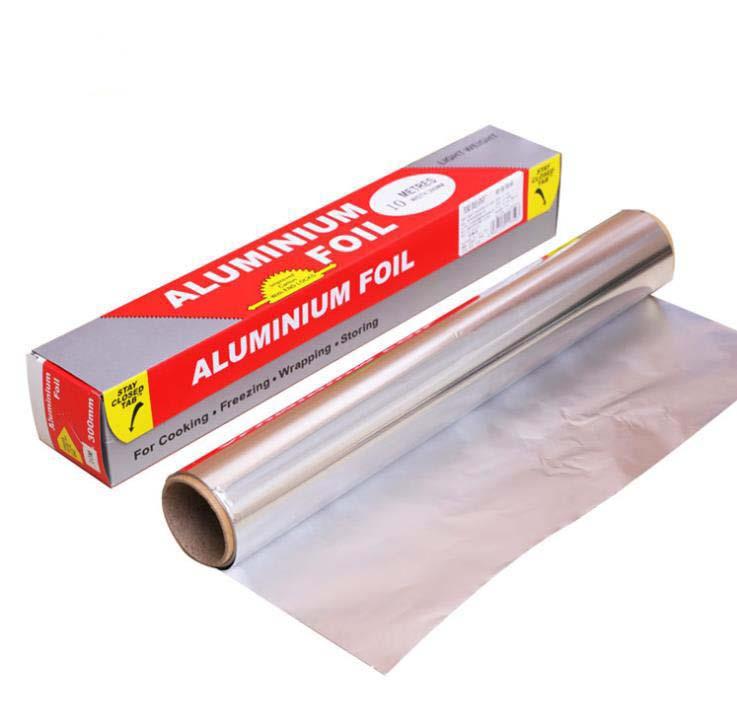

Aluminium foil stretch film rewinder is used for the rewinding of food aluminum foil ,stertch film, which can divide the large jumbo roll into the same width small roll,this model can do big size of rolls also.
Machine works with 2 shaft exchange,automatic counting,once reach the setting length it will automatic deceleration,work stablely and high efficiency.

Technical Parameters

Name:Aluminium Foil Stretch Film Rewinder

Model:PPD-AFSR500

The max diameter of jumbo roll: 600mm

The max width of the jumbo roll: 600mm (width can be customized)

Aluminum foil thickness range: 6-20micron

Stretch film thickness range：8-25micron

Raw material core tube inner diameter: 76mm

Finished small roll core diameter: 30mm,35mm,76mm or as customized.

Production speed: 300rpm/min

Finished small roll length: 5m-300m

Motor Power: 2.2Kw
