PPD-5H300

Automatic High Speed Cling Film Rewinder

Automatic High Speed Cling Film Rewinder

Automatic high speed cling film rewinder is with core auto loading,5 shafts auto exchanging for rewinding,the speed is double than other machine.Auto warning when no paper core.free setting for the rewinding length.
The control is of LCD panel consists of PLC+ transducer+ signal switch.The main electrical components of high quality are imported. The performance of the machine is very stable and reliable.
The LCD panel is ergonomically design for easier operation and maintenance. It can be set as fully auto, semi auto and manual.

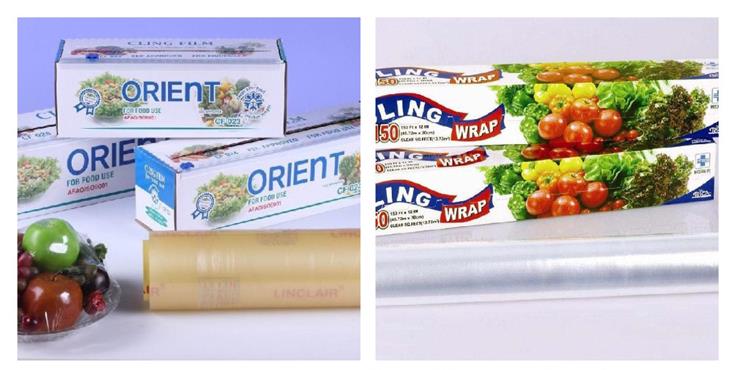

It is Ideal for production of the PVC food cling film roll,and PE stretch cling film roll for both film from film Blowing machine and film extruder machine.

Technical Data:

Name:Automatic High Speed Cling Film Rewinder

Model:PPD-5H300

Max mother roll width: 300mm

Mother roll core:3inch

Mother roll outer diameter:450mm

Finished roll core:1/1.5/2/3inch

 Finished roll max outer diameter:max100mm

 Power:6.5kw

 Speed:Max 650m/min

 Voltage:220/380/415V option
