Auto cling film rewinding machine

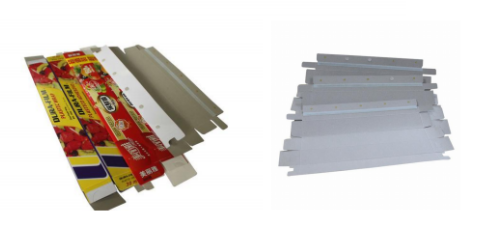

Automatic plastic blade laminating machine is a fully automatic equipment specifically designed to automatically, precisely, and securely bond pre-formed plastic saw blades to designated positions on cling film or aluminum foil boxes using hot melt adhesive, thus creating an easy-tear opening for the product. It achieves full automation of the entire process, from saw blade feeding, positioning, gluing, and laminating to finished product output.

Features:
1. Box storage bin: Automatic paper box feeding and storage bin, adjustable according to paper box size.
2. Knob-adjustable gluing position: Photoelectric sensing, knob adjustment for gluing position (left for earlier gluing, right for later gluing).
3. Saw blade roll servo feeder: Saw blade width and feeding size are adjustable.
4. Equipment control panel: The control panel allows for adjustment of equipment parameters.
5. Saw blade roll servo feeder: Saw blade width and feeding size are adjustable.

Main Parameters:

Name:Automatic Plastic Blade Laminating Machine

Model:PPD-PBLM450

Saw Blade Specification:≤450mm

Box Size:30cm/45cm

Adhesive Type:Hot Melt Adhesive

Gluing Method:Spray Gluing

Glue Tank Capacity:5KG/h

Production Speed:20-25 pieces/minute

Voltage:380V, 50Hz, 4kw

Air Source Pressure:0.45-0.8Mpa
