PPD Machinery

PPD-CPPR450

Coreless Parchments Paper Rewinder

Coreless Parchments Paper Rewinder

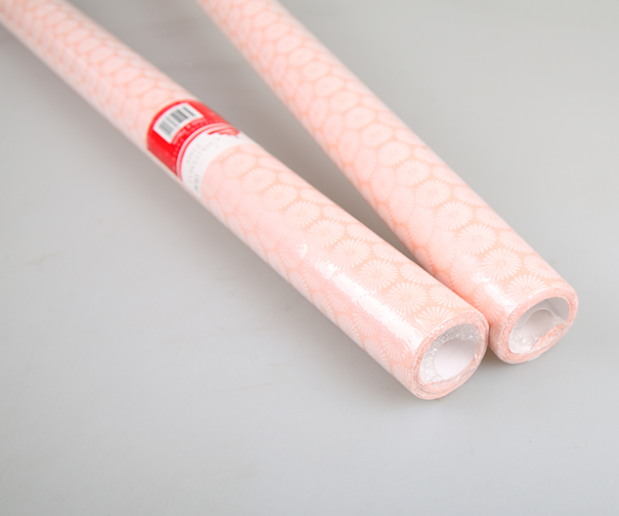

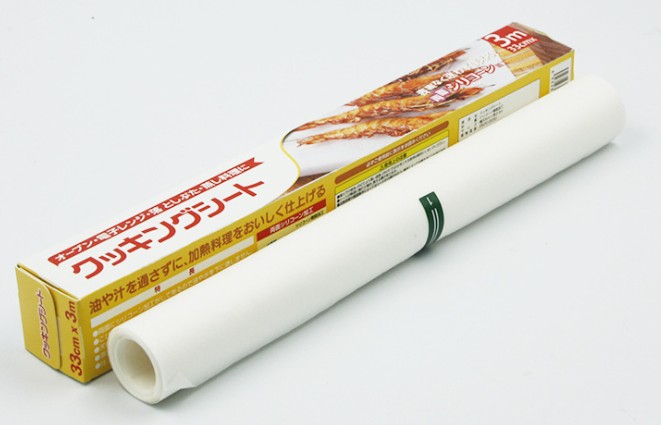

Coreless parchments paper rewinder is design for rewinding of the coreless silicon paper roll,bakery paper roll,baking paper roll,wax paper roll,gift paper roll,book cover roll,and some gift film roll etc..
Rewind the big jumbo roll to the small product roll,max to the 60meters coreless product roll.
Machine is with 6 shafts rewinding system,high production output.

Features:
1.6 shaft production,high efficient.
2.Coreless model,no need paper core,save the paper core cost a lot
3.Suitable material: silicon paper,baking paper,wax paper roll,gift paper,book cover etc.

Technical Data:

Name:Coreless Parchments Paper Rewinder

Model:PPD-CPPR450

Width of parent roll :  max450mm

Outer diameter of parent roll:   max600mm

Inner diameter of parent roll: 76mm(3inch)

Loading method of parent roll: Pneumatic cylinder

Inner diameter of baby roll:  coreless 25mm

Length of baby roll:   5-30m option

Speed: max600rpm/min

Voltage: 220/380/415/450v,3ph(option)

Power: 2.5 kw

Get Quote: Coreless Parchments Paper Rewinder-PPD-CPPR450
