Aluminium foil food paper rewinder
PPD-WFPR800

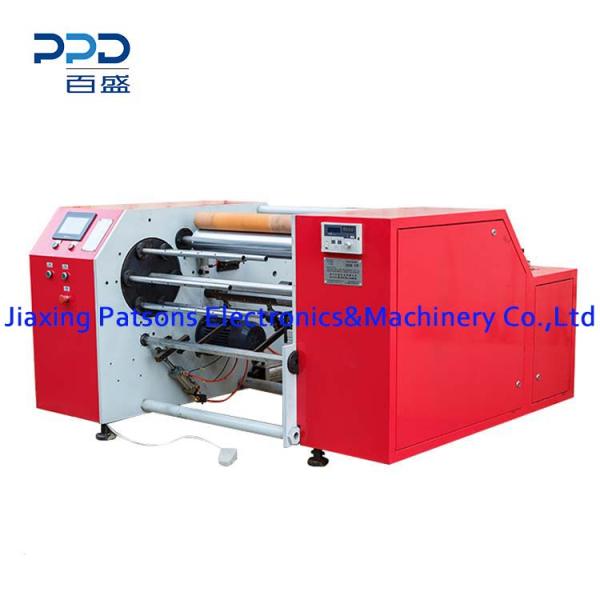

Coreless Window Film Rewinder

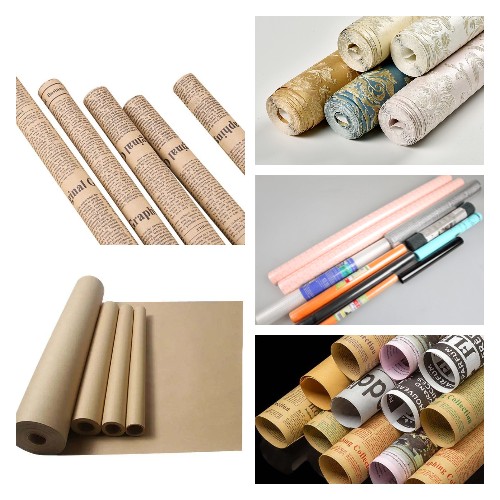

Coreless window film rewinder can be used for rewinding of window film, wallpaper, gift paper, self-adhesive,book cover, table cover,non-woven fabric, PE, BOPP, PVC film, etc.
Machine adopts a private server motor and PLC control system to maintain smooth and stable acceleration and deceleration.
It is a 2 in 1 model,can do both paper core and coreless product.
Features:
1Automatic meter counting, random meter setting, automatic shutdown and automatic cut-off when the meter is reached
2. The rewinding adopts a single inflatable shaft structure, and the product is cut off using a rodless cylinder for automatic shuttling, making loading and unloading operations convenient
3.The unwinding roll adopts a air shaft structure, with automatic feeding
Main Data:
Name:Coreless Window Film Rewinder
Model: PPD-WFPR800
Maximum unwinding roll width: 800mm
Materials: paper, self-adhesive, self-adhesive, non-woven fabric, PE, BODP, PVC film, etc
Unwinding roll diameter: max800mm
Rewinding roll core size:25mm or as customized size.
Rewinding roll outer diameter: max200mm
Running speed: 0-200m/min
Voltage: 220/380/415V option
