PPD-CG450

Fully auto winding machine aluminium house foil roll

Fully auto winding machine aluminium house foil roll

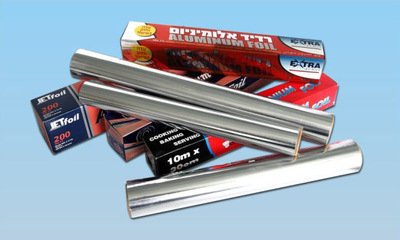

Fully auto winding machine aluminium house foil roll PPD-CG450 is deigned for very compact size in installation space,it is ideal for rewinding for the consumer roll of aluminium foil,widely used for house foil,kitchen foil,restaurant,hotel,canteen,bakery,baking,BBQ etc.
This model is non-stop production when the finished roll is cut off,and the next run for the next paper core is same time on rewinding,the core exchange speed is rapid.
The gluing system is at very precise of volume for every paper core gluing spray.
PLC program reflect the signal to the machine,user will only requires to click the touch screen page to operate the machine.
The ready roll will deliver to the packing area by the automatic convey system to wait for the packing into the carton color box.



Main Data:

Raw material:Aluminium foil

Parent roll width:100-450mm

Parent roll ID:76/152mm

Parent roll OD:max 600mm

Rewind roll width:100-460mm

Rewinding roll ID:25/35/38/40mm etc

Rewinding roll length:2-150meters

Speed:max 300m/minute

Power:2.5kw

Electricity:220/240/380/415/450v

Air supply:0.2Mpa
