PPD Machinery

PPD-4SH770

Automatic 4 shaft changing stretch wrap slitter rewinder

Automatic 4 shaft changing stretch wrap slitter rewinder

Automatic 4 shaft changing stretch wrap slitter rewinder is very efficient model for high speed slit jumbo roll of stretch film into small roll.
This model is with new design for 4 shaft of rewinding station,each two shafts work as a pair,when the 2 shaft is finished the work,the machine will automatic change into the next pair of 2 shaft rewinding station.By this unique design,the production rate will be improved at about 30-50% than the conventional model.
Machine is very simple for operator,it is completed with PLC smart moduel coordinate with LCD touch screen for One-Press only for produciton,the operator only needs to input the data as per requires.

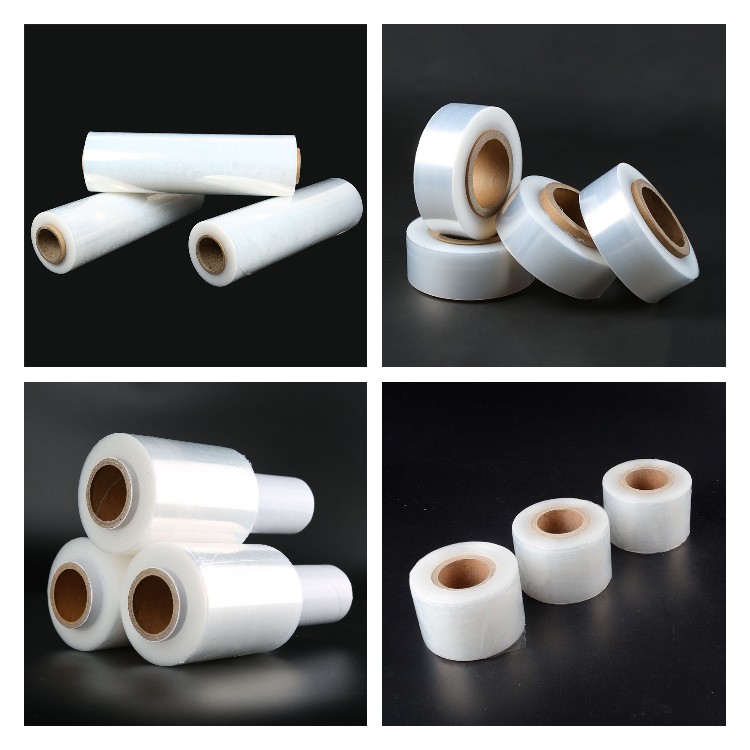

This model is able to slit&reiwnd for stretch film hand roll,banding stretch wrap,bundling stretch film roll etc.It is also can slit the PVC wire portection film too.

Main Profile:

Name:Auatomatic 4 shaft changing stretch wrap slitter rewinder

Model:PPD-4SH770

Material:Stretch film

Master reel width:30inch/770mm

Master reel inner core diameter:3''/76mm

Master reel outer core diameter:500mm

Slitting roll width:2-30inch/50-770mm

Slititng roll inner core diameter:1/1.5/2/3inch 25/38/50/76mm

Slitting roll length:maximum 500meters

Speed:650meters per minute

Power:2.5kw

Pneumatic supply:0.3Mpa

Voltage:220/240/380/415/450v

Frequency:50&60Hz

Phase:3ph




Get Quote: Automatic 4 shaft changing stretch wrap slitter rewinder-PPD-4SH770
