PPD Machinery

PPD-PUF680

Pop Up Foil Sheet Folding Making Machine

Pop Up Foil Sheet Folding Making Machine

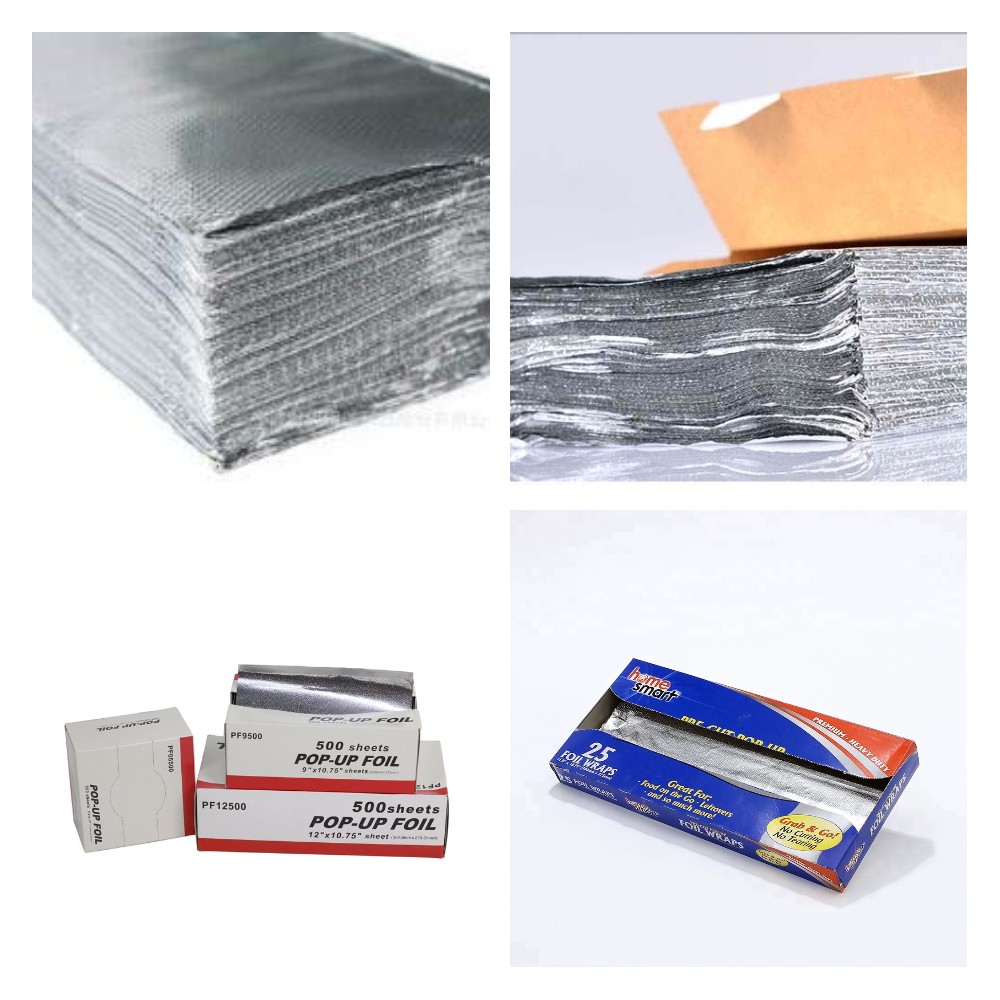

Pop up foil sheet folding making machine is ideal for producing pre-cut, interfold, pop up foil sheet of aluminium foil,kitchen foil etc.
It can producing non-stop with two/three/four lanes,high efficiency and simple in operation.

Features:
1.It can connect with auto cartoning machine setup a full automatic production line.
2.Automatic tension control system.
3. The upper and lower two sets of rigid rubber roller embossing devices can be embossed online.
4.It is driven by variable frequency motor with adjustable speed.
5 Vacuum absorption folding, finished pop up sheet collecting and pushing out to belt.

Main Data:

Name:Pop Up Foil Sheet Folding Making Machine

Model:PPD-PUF680

Suitable material:aluminum foil

Jumbo roll OD:max600mm

Jumbo roll width:max680mm

Size of foil sheet:273mm x 225 or 300mm(Lx W)

Folding size:135mm x 225 or 300mm(L x W)

Fold shape:V fold

Production speed:max800pcs/min

Total power:5kw

Voltage:380V,3ph

Air supply:0.6MPa

Machine dimension:4500 x 1500 x 1850mm

Weight:4000kg



Get Quote: Pop Up Foil Sheet Folding Making Machine-PPD-PUF680
