Kitchen foil roll rewinder

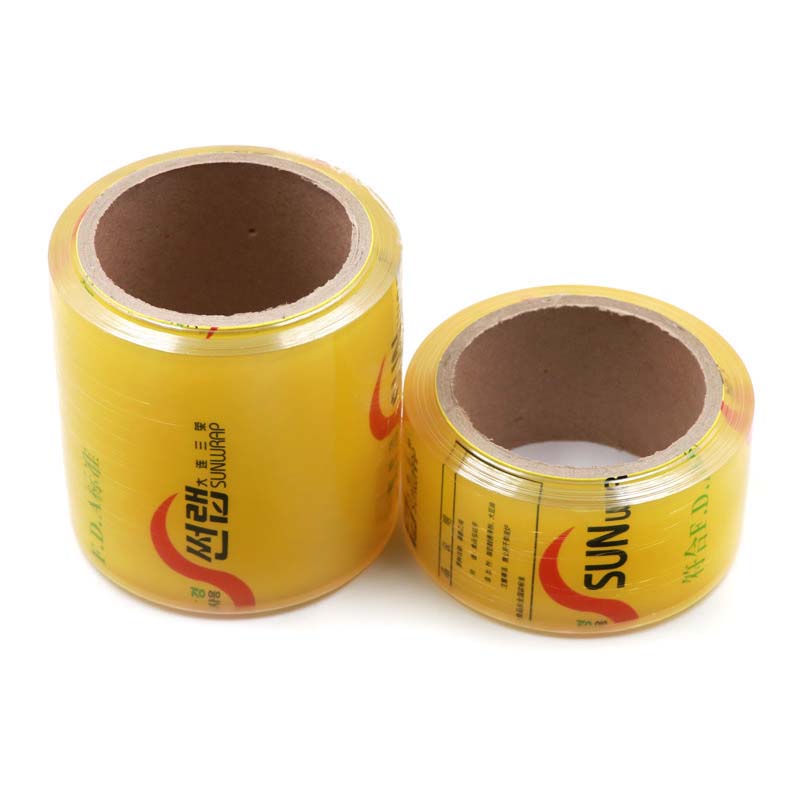

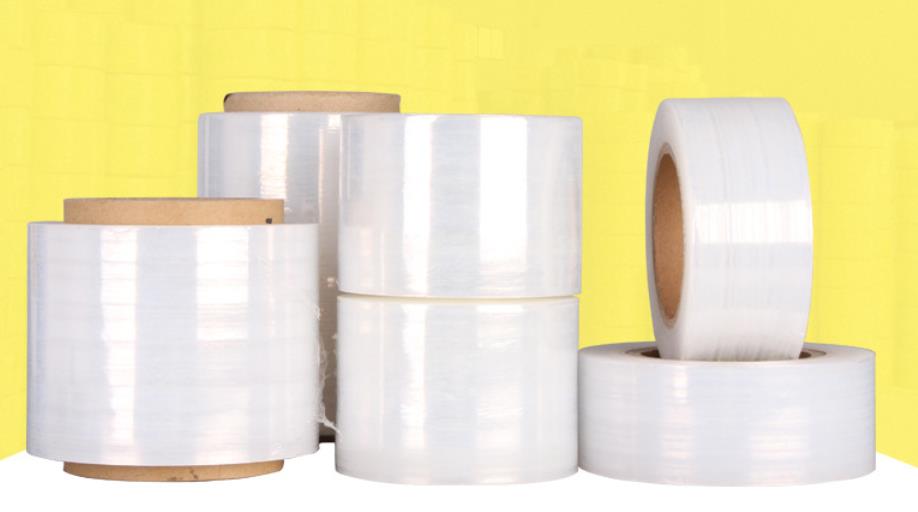

Semi auto stretch film cling film slitter rewinder (air shaft) is used for rewinding of PE stretch film,PE/PVC cling film,and can let the film more tight and beautiful ,it can change the paper core for different place using and can be used for cutting the PE/PVC cling film also,cut to be shorter,easily controlled by hand.

Features:
1.Machine speed control is by inverter,the length control is by premium counting system.
2.It can be value added to work as dual-shaft exchange semi auto stretch film rewinder once the knife is moved up.
3.Adjustable width size:30mm to 500mm option, minimum width of sub-roll: 30 mm.
4. Machine equipped with metal pipes and connectors for 1.5/2inch paper cores, air shaft for 3inch paper cores.
5.High designed speed: max600 meters per minute.

Technical Data:

Name: Semi Auto Stretch Film Cling Film Slitter Rewinder(Air Shaft)

Model: PPD-SASFA500

Jumbo roll width Max 500mm

Thickness:7 micron to 15 micron

Jumbo roll OD:Max 500mm

Jumbo roll ID: 3inch,6inch

Sub roll width: 30 to 500mm

Sub roll ID: 38/50/76mm(1.5/2/3inch)

Sub roll OD:Max 220mm

Shrinkage Factor Total:2 mm(Both side 1mm)

Air supply:0.2Mpa

Blade holder:10pcs

Max weight at unwinder mother roll: 55kg

Max weight at rewinder:15kg

Production speed:Max600m/min

Power:1.7kw

Voltage supply:220/380/415V,50Hz
