Stretch film slitter rewinder

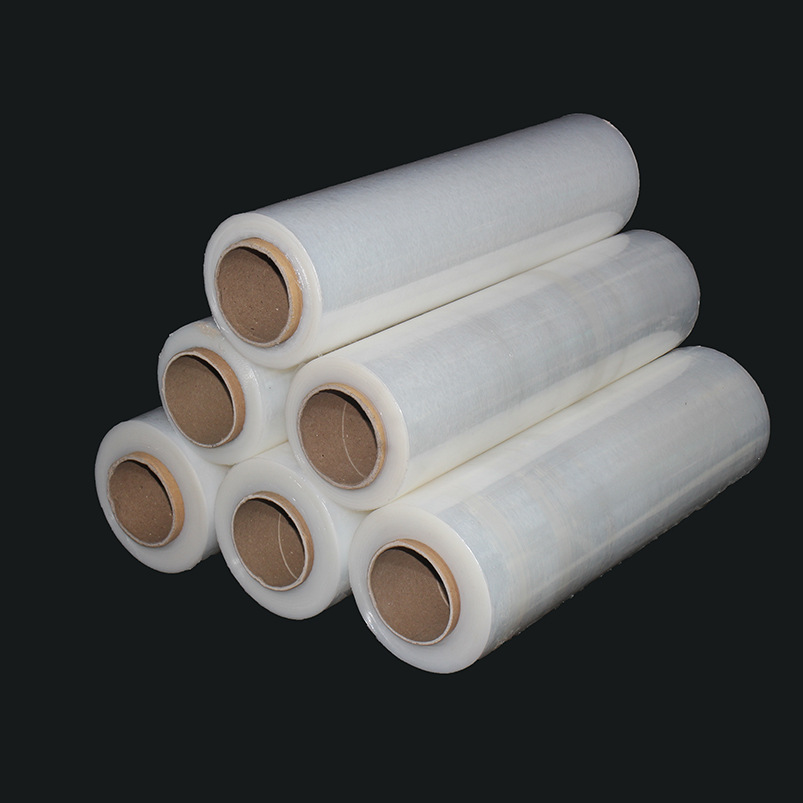

2 shaft stretch film slitter rewinder(auto slitting) is our latest design model.It is primarily used to convert larger cast film rolls into smaller ones, in an efficient way to meet customers' requirements. Rewinding improves the tensile strength and puncture resistance, as well as adds to the tight appearance of the finished roll.
Machine works with touch screen and PLC program control,can set length in touch screen directly.

Features
1.It is a multi functional model,can do slitting, rewinding,automatic meter counting, automatic exchange rewinding shaft,automtic cutting once finished rewinding,automatic take off the cutted product roll.
2. Two spindle revolver type rewinding system,automatic slitting and rewinding,max speed can reach 600meter per minute.

Main Data:

Name:2 Shaft Stretch Film Slitter Rewinder (Auto Slitting)

Model:PPD-SFASR500

Jumbo roll width:500mm

Jumbo roll OD:max500mm

Slitting width:50-500mm

Rewinding roll ID:3inch air shaft

Rewinding roll OD:max180mm

Speed:0-600m/min

Voltage:220/380/415V,50Hz
