Coreless pe coated food paper rewinder

Automatic coreless silicon paper baking paper rewinder with auto label sticker is our latest design for rewinding of food paper.
Machine works touch screen,PLC and inverter control for simple operation.

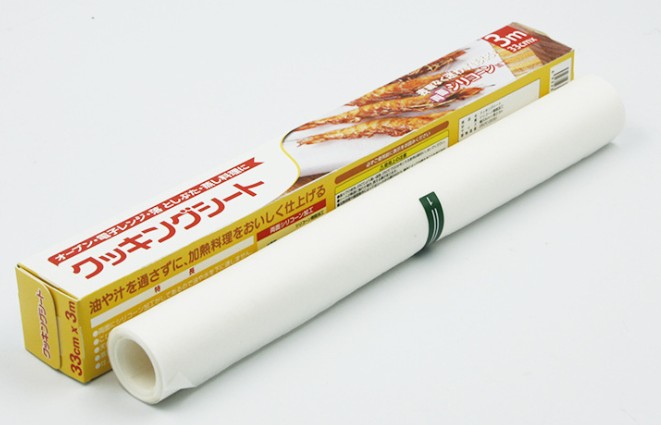

It is ideal for rewinding of coreless product roll,such as silicon paper,baking paper,wax paper,PE coated paper,bakery paper,gift paper,book cover etc.


1.Machine works with 6 shafts rewinding system,high production output.
2.Machine is equipped auto labelling system,will be auto labelling for the final product directly.
3.Machine works with auto mechanical arm,can easily take off the finished product roll.
4.Automatic meter counting,automatic stop once reach the setting length.

Technical Data:

Name:Automatic Coreless Silicon Paper Baking Paper Rewinder With Auto Label Sticker

Model:PPD-ACSPL450

Width of parent roll: max450mm

Outer diameter of parent roll: max600mm

Inner diameter of parent roll:76mm(3inch)

Inner diameter of baby roll:  coreless 25mm

Length of baby roll:max60meters

Speed: max120m/min

Voltage: 220/380/415/450V,50Hz
