PPD Machinery

PPD-CSFR500

Coreless Stretching Film Rewinder

Coreless Stretching Film Rewinder

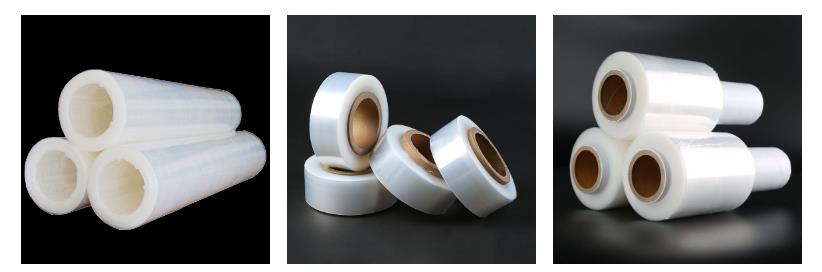

Coreless stretching film rewinder is ideal for rewinding the stretch film,LLDPE film,PVC Food cling film etc.
By the excellent pneumatic shaft to release the air pressure,,it can produce coreless stretch film roll. It also be able to rewind standard stretch film roll with paper core when use the standard accessory.
Meanwhile,as an free option,this is also multi-funcational model to be a stretch film slitter from the mother roll to hand roll for the smaller width by the knife system installed.
In total,this is a 3 in 1 multi fucntion model for coreless stretch film rewinder,standard stretch film slitter,standard stretch film rewinder

Technical Data:

Name:Coreless Stretching Film Rewinder

Model:PPD-CSFR500

Unwind width:500mm(max)

Unwind roll max diameter:400mm

Unwind paper core dia:3 inch

Rewind diameter:180mm(max)

Rewind width:30mm-500mm

Rewind paper tube dia:1.5 inch,2 inch,3 inch(76)

Slitter Rewinder speed: 650m/min(max)

Coreless roll inner diameter:3inch

Power: 3kw

Voltage:220/380/415V option


Get Quote: Coreless Stretching Film Rewinder-PPD-CSFR500
