PPD Machinery

PPD-CSFR600

Coreless Stretching Film Rewinding Machine

Coreless Stretching Film Rewinding Machine

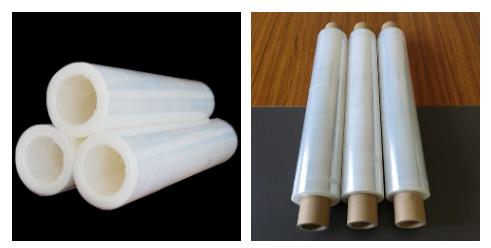

Coreless stretching film rewinding machine is ideal for rewinding the stretching film,PE film,PVC Food cling film etc. By the excellent pneumatic shaft to release the air pressure,,it can produce coreless stretch film roll. It also be able to rewind standard stretch film roll with paper core when use the standard accessory.
Meanwhile,as an free option,this is also multi-funcational model to be a stretch film slitter from the mother roll to hand roll for the smaller width by the knife system installed.
It is user friendly,cost effective.A skilled operator not requested.

Technical Data:

Name:Coreless Stretching Film Rewinding Machine

Model:PPD-CSFR600

Unwind width: 600mm(max)

Unwind roll max diameter: 420mm

Unwind paper core dia: 3 inch(76mm)

Rewind diameter: 300mm(max)

Rewind width: 30mm-600mm

Rewind paper tube dia: 1.5 inch,2 inch,3 inch(76)

Rewinder speed: 650m/min(max)

Slitter speed: 650m/min(max)

Power: 3kw

Voltage:220/380/415V option



Get Quote: Coreless Stretching Film Rewinding Machine-PPD-CSFR600
