PPD-SPRE500

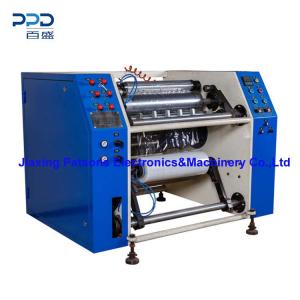

Semi Auto Pre Stretch Film Rewinder

Semi Auto Pre Stretch Film Rewinder

Semi auto pre stretch film rewinder mainly includes the functions of pre stretching, rewinding and slitting.
According to different stretch ratios, the length of the original film can be pre-stretched to 100-300% length, which effectively saves the use cost.
In addition, this machine can also be used for ordinary slitting and rewinding functions. After rewinding, the staggered layer of the product will be corrected and the flatness of the product appearance will be improved.

Features:
1. Frequency conversion control, very high speed up to 600m/min
2. The diameter of the winding paper tube is 2,3 inches.
3. This machine has the function of slitting and can be directly made into small rolls of pre-stretched film.
4. Machine works with electrical components of Taiwan brand to make the product quality more reliable.

 Technical parameter:

Product name:Semi Auto Pre Stretch Film Rewinder
Model PPD-SPRE500
Film width: max500mm
Film thickness: 0.01-0.05mm
Rewinding width: 50-500mm
Outer diameter of parent roll: max400mm
Diameter of mother roll paper tube: 3”
Diameter of rolled paper tube: 2/3inch
Rewinding diameter: max300mm
Rewinding speed: max600m/min
Voltage:220/380/415V option
