PPD Machinery

PPD-SA-63T

Semi Automatic Aluminium Foil Tray Making Machine

Semi Automatic Aluminium Foil Tray Making Machine

Semi automatic aluminium foil tray making machine include automatic siamese oil feeding machine, 63T high performance press machine,foil mould, product collection table etc.
Machine adopts the electronically controlled stepping system. It can adopt the PLC electronic control system according to the customer's requirements. It has the function of the main body reversing function, adopts the double safety solenoid valve, and the pressure relay ensures the operation safety.
The high preformance press machine adopts steel plate welding body and has high rigidity. It features dry friction clutch, which can make the slider stop at any position. At the same time, it can realize single-time, inching and continuous operation, which is beneficial to adjust the position of the mold and workpiece at any time and improve the machining accuracy.

Features:
1. Gas/electricity integration, centralized control.
2. The feeding system is controlled by computer length and length, and can be adjusted freely within the length of 30mm~999mm. The model is slightly different depending on the size of the product requested by the customer.
3. The mould has the characteristics of long service life, stable and reliable quality, reasonable design and high precision.

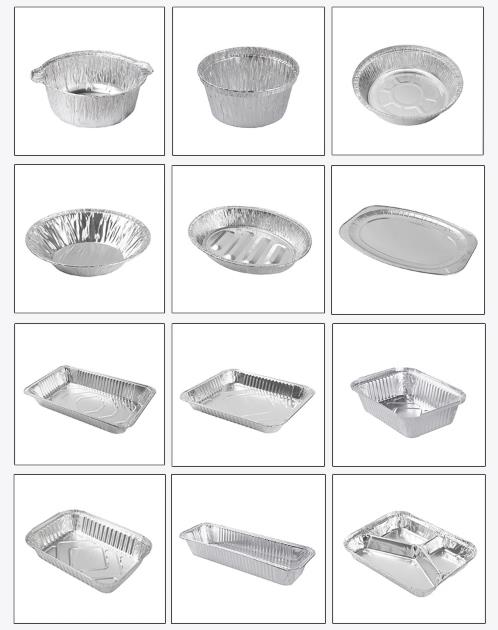

4. Precision processing technology, cutting, forming, stretching and crimping of aluminum foil vessels are completed once.

 I.Feeding Machine:

Material roll diameter:Max800mm
Material roll width:700mm
Feeding speed:20-50M/min
Feeding length:30-999mm
Feeding tolerance:+/-0.3mm
Power:1kW
Voltage:380V

II.Press Machine:
Pressure:630KN
Body work plate hole dimension:325*400mm
Stroke time:60-100times/min
Stroke height:220-240mm
Work plate thickness:100mm
Die Installation height:Max420mm
The distance from the center of slice to the body:450mm
The height adjustment for die:80mm
Bloster Size:1100*900*100mm
Die handle hole dimension 50*60mm
Work plate dimension660*1000 mm
Voltage:380V,3ph,50hz
Power:7.5KW
Air consumption: 0.6-1MPa
NOTE:Different sizes can be customized.
