PPD-SA45T

Semi Auto Aluminium Foil Container Production Machine

Semi Auto Aluminium Foil Container Production Machine

Semi auto aluminium foil container production machine is a small production line for making of aluminium foil tray.
It includes automatic feeder,high accuracy press,the mould is optional for buyers.

Production flow:

Decoiling---foil lubricated---foil feeding ---punching—container collecting manually.



Main Technical Parameter:

I.  PPD-700  SERVE FEEDER



Max. coil outside Diameter:Ф600mm

Max. coil width:680mm

Roll Inner Diameter :ф76mm(3 inch)

Feeding Speed:0-30M/min

Feeding Length:20-900mm

Feeding Tolerance:+/-0.3mm

Servo Motor power:1.5Kw

Uncoiler Motor power:0.75Kw

Lift Motor power:0.2Kw

Power supply:As per the user

Max. Loading weight:500KG

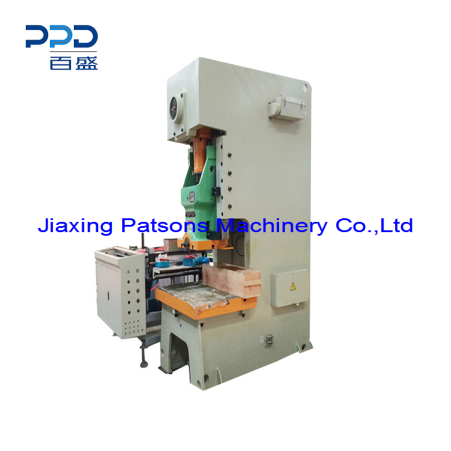

II.PNEUMATIC PRESS MACHINE



Pressure:450KN

Line speed:30-50 times/min

Stroke:230mm

Max mould setting height:400mm

Size of Screw Hole of Mould:50*60mm

Worktable dimension:1000*800 mm

Machine Dimension:2300*1360*3100mm (L*W*H)

Motor power:7.5KW

Machine Weight:5200kg





Power supply:As per the user
